INTEGRATED FILTRATION EQUIPMENT

UNDER GROUND INTEGRATED EQUIPMENT

The box is made by PP material for one-time injection molding.

UNDER GROUND INTEGRATED EQUIPMENT

The box is made by PP material for one-time injection molding.

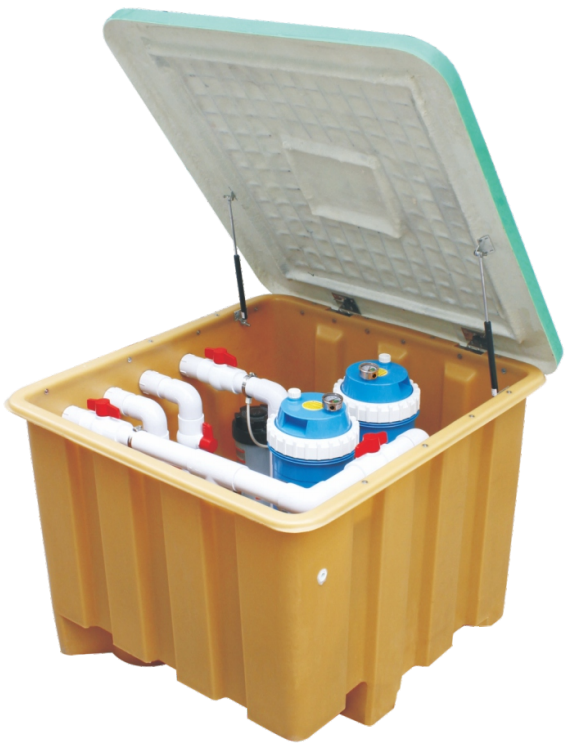

URS-38

- 3.5HP/220V filter pump 1 unit

- AF-75 cartridge filters 2 units

- 9 pounds automatic chemical feeder 1 unit

- Cable junction box 1 unit

- Filter capability：38m³/h

- Dimension：1.10X1.22X0.98m

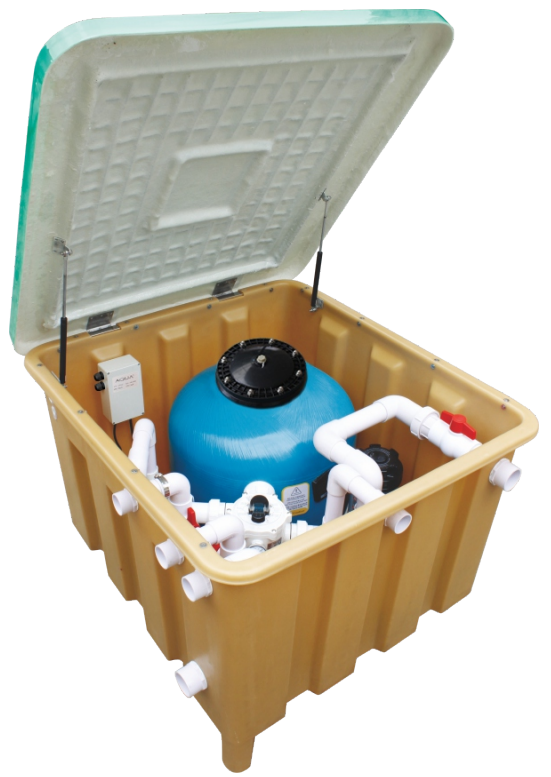

URS-16

- 1.5HP/220V filter pump 1 unit

- Ø 650 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：16m³/h

- Dimension：1.10X1.22X0.98m

URS-16T

- 1.5HP/220V filter pump 1 unit

- 2HP/220V massage pump 1 unit

- Ø 650 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：16m³/h

- Dimension：1.10X1.22X0.98m

Stable, anti-impact, anti-exposure, anti-ultraviolet, strong and durable.

UR-25

- 2HP/220V filter pump 1 unit

- Ø 800 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：25m³/h

- Dimension：1.53X1.38X1.08m

UR-33

- 3HP/220V filter pump 1 unit

- Ø 900 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：33m³/h

- Dimension：1.53X1.38X1.08m

UR-25T

- 2HP/220V filter pump 1 unit

- 3HP/220V massage pump 1 unit

- Ø 800 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：25m³/h

- Dimension：1.53X1.38X1.08m

URS-38

- 3.5HP/220V filter pump 1 unit

- AF-75 cartridge filters 2 units

- 9 pounds automatic chemical feeder 1 unit

- Cable junction box 1 unit

- Filter capability：38m³/h

- Dimension：1.10X1.22X0.98m

URS-16

- 1.5HP/220V filter pump 1 unit

- Ø 650 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：16m³/h

- Dimension：1.10X1.22X0.98m

URS-16T

- 1.5HP/220V filter pump 1 unit

- 2HP/220V massage pump 1 unit

- Ø 650 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：16m³/h

- Dimension：1.10X1.22X0.98m

UR-25

- 2HP/220V filter pump 1 unit

- Ø 800 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：25m³/h

- Dimension：1.53X1.38X1.08m

UR-33

- 3HP/220V filter pump 1 unit

- Ø 900 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：33m³/h

- Dimension：1.53X1.38X1.08m

UR-25T

- 2HP/220V filter pump 1 unit

- 3HP/220V massage pump 1 unit

- Ø 800 sand filter 1 unit

- 9 pounds automatic chemical feeder 1 unit

- Six multi-way valve 1 unit

- Cable junction box 1 unit

- Filter capability：25m³/h

- Dimension：1.53X1.38X1.08m
